Elins Technologies Private Limited

Elins Technolgies is providing cloud services to create IIOT based applications. These services are free, in order to use these services, register on Elins Cloud Server page as discussed in steps below:

Step1: Click on this icon to register :



Step2: For Registration enter your "Name" and your "email ID".

Step3: Click on "Submit" button.







This is Services page of Elins Cloud Server. Here You can select which Sensor based IIOT Ecosystem Service you wants to use, on this page, you can click on any Icon to open its IIOT Web Panel:







Watch this Video to see the Registration Process:

If you are already Registered User then Login directly through process explained below:

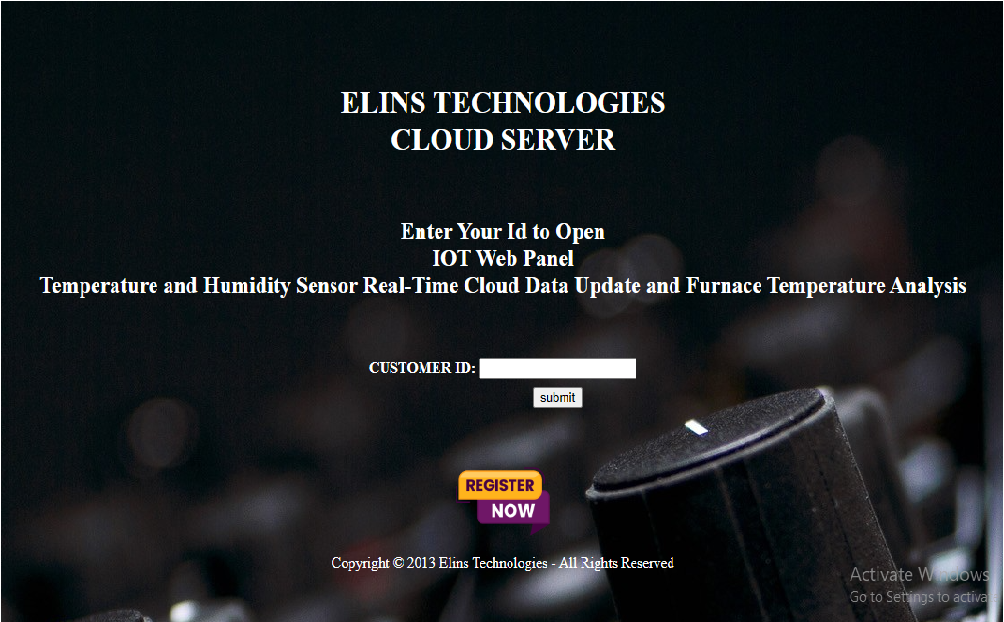

Step1: Click on this icon to Login :



Step2: For Login enter your "Id" which you have recieved after Registration.

Step3: Click on "Submit" button.

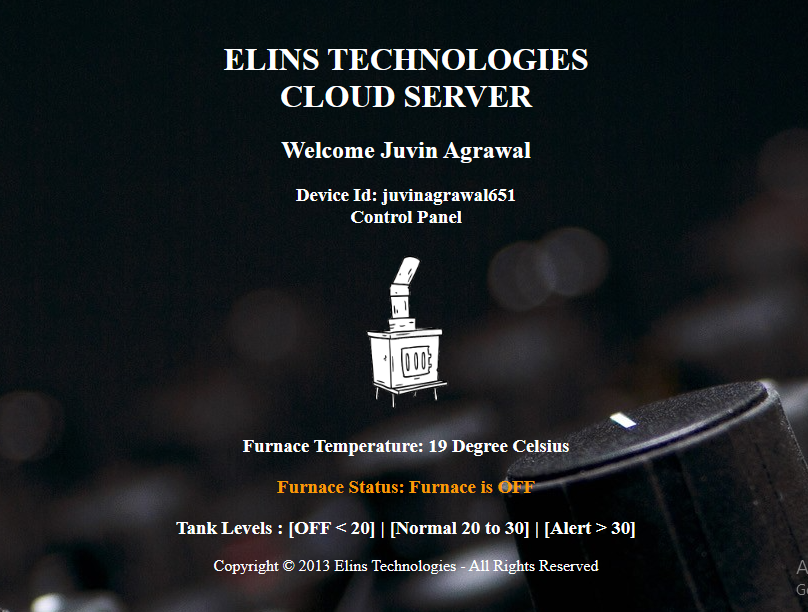

This is IIOT Web Panel to see Real-Time cloud data update and furnace temperature analysis :







Watch this Video to see the Login process:

NodeMCU required a code to communicate with the cloud server. Let us discuss this code in detail.

Cloud Arduino code: elins_edu_dht11_code1.zip, Download it from link below:

Unzip the file and open the .INO file

Tutorial for DHT11 sensor Code Explain | IOT Learning Kit | Elins Cloud |

This is the Code of NodeMCU to communicate with Elins Cloud Server.


#include < Arduino.h > #include < ESP8266HTTPClient.h >
#include < ESP8266WiFi.h >
#include < SoftwareSerial.h >
#include < DHT.h >
#include < DHT_U.h >

#define LED D0 // DECLARE LED TO PIN D0 (ON BOARD LED)
#define DHTPIN D7 // DECLARE DHTPIN TO PIN D7 (DHT11 SENSOR IS CONNECTED AT D7)
#define DHTTYPE DHT11 // SELECT DHT 11 SENSOR OF DHT SERIES
DHT_Unified dht(DHTPIN, DHTTYPE); // CREATE OBJECT dht WITH DHTPIN AND DHTTYPE

const char* ssid = "Elins Tech."; // PUT SSID OF YOUR WIFI HERE
const char* password = "jaimatadi21"; // PUT PASSWORD OF YOUR WIFI HERE


void setup() {
      delay(5000);
      Serial.begin(9600); // INITIALIZE UART SERIAL MONITOR TO DISPLAY EVENTS
      pinMode(LED,OUTPUT); // DECLARE LED PIN AS OUTPUT PIN
      pinMode(DHTPIN,INPUT); // DECLARE DHT PIN AS INPUT PIN
      digitalWrite(LED,0); // INITIALIZE LED PIN WITH 0 - ON LED

      // CODE TO INITIALISE DHT11 SENSOR FOR TEMPERATURE MEASUREMENT
      dht.begin();
      sensor_t sensor;
      dht.temperature().getSensor(&sensor);

      Serial.println();
      Serial.println();
      Serial.println();

      WiFi.begin(ssid,password); // START WIFI CONNECTION WITH SSID PASSWORD
      Serial.print("[CONNECTING] WAIT ...");

      while (WiFi.status() != WL_CONNECTED) // WAIT TILL WIFI IS CONNECTED
      {
         delay(100);
         Serial.print(".");
      }

      Serial.println("WIFI CONNECTED SUCCESSFULLY");
}

String payload="";
String DeviceId="juvinagrawal651"; // CHANGE IT WITH DEVICE ID RECEIVED FROM CLOUD
HTTPClient http;

int t=0;

void loop(){

    // CODE TO CALCULATE TEMPERATURE FROM DHT11 SENSOR
    sensors_event_t event;
    dht.temperature().getEvent(&event);
    if (isnan(event.temperature)) {
      Serial.println(F("Error reading temperature!"));
    }
    else {
      t = event.temperature; // HERE TEMPERATURE IS STORED IN t VARIABLE
    }
    Serial.println(t);



// CODE TO UPLOAD SENSOR DATA ON ELINS CLOUD
      String URL = "";
      URL = URL + "http://elinstechnologies.com/netobox_v1/http_dht_device.php?id=" + DeviceId + "&t=" + t; // CLOUD URL
      http.begin(URL); // MAKE HTTP CONNECTION WITH CLOUD
      http.addHeader("Content-Type", "application/x-www-form-urlencoded"); // SPECIFY CONTENT-TYPE HEADER
      int httpCode = http.GET(); // SEND HTTP GET REQUEST TO CLOUD
      payload = http.getString(); // RESPONSE FROM CLOUD
      Serial.println(payload); // PRINT PAYLOAD
      http.end(); // Close connection


            // BLINK LED TO INDICATE ONE CYCLE OF HTTP REQUEST
            digitalWrite(LED,1);
            delay(500);
            digitalWrite(LED,0);
            delay(500);
            digitalWrite(LED,1);
            delay(500);
            digitalWrite(LED,0);
            delay(500);

delay(5000);
// END OF CODE
}

We have completed following steps upto now:
# Elins Cloud Registration (Got IIOT Web Panel from it).
# Cloud Arduino Device Code (NodeMCU is ready and communicating with Elins Cloud)

Now Let us RUN the complete IOT Ecosystem all together. For this follow the steps below:


Step1: Click on this icon to Login :



Step2: For Login enter your "Id" which you have recieved after Registration.

Step3: Click on "Submit" button.




This is IIOT Web Panel to see Real-Time cloud data update and furnace temperature analysis :







Step4: Give Power supply to IOT Kit, Now device LED is blinking, it means device connected with internet.Now real-time data will be displayed on this IIOT Web Panel. To see How this IIOT Ecosystem Work all together, watch this video :

Working Demo DHT11 Sensor with Elins Cloud | IOT Learning Kit Extension Board | Elins Technologies

Step5: So in this way, real time data will be displayed on this IIOT Web Panel.

For next tutorial, Click NEXT.

We hope you enjoyed and learn properly how to create

complete IOT Ecosystem.

for any doubt or query email us at info@elinstechnologies.com

or Whatsapp us

# IOT LEARNING KIT

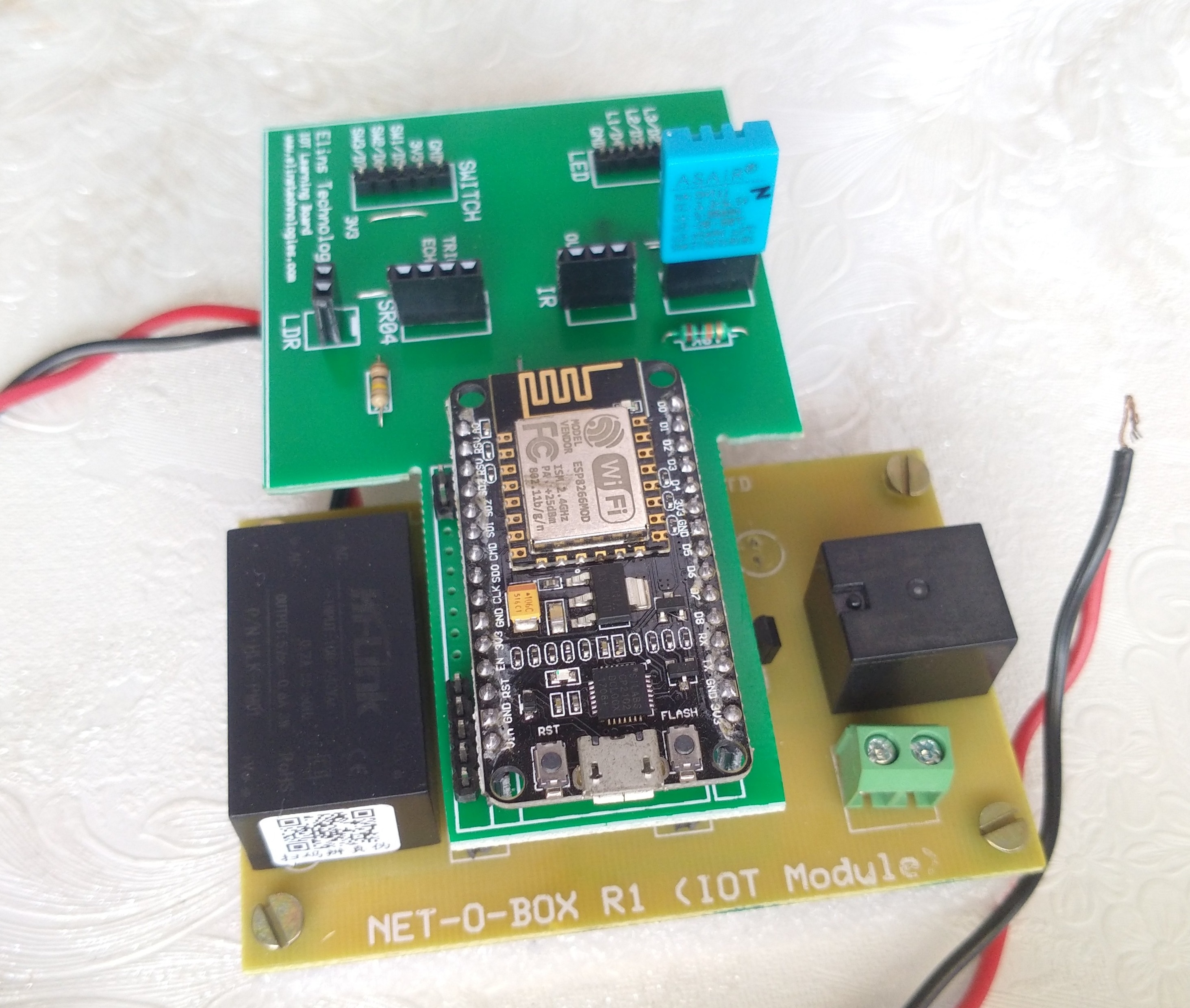

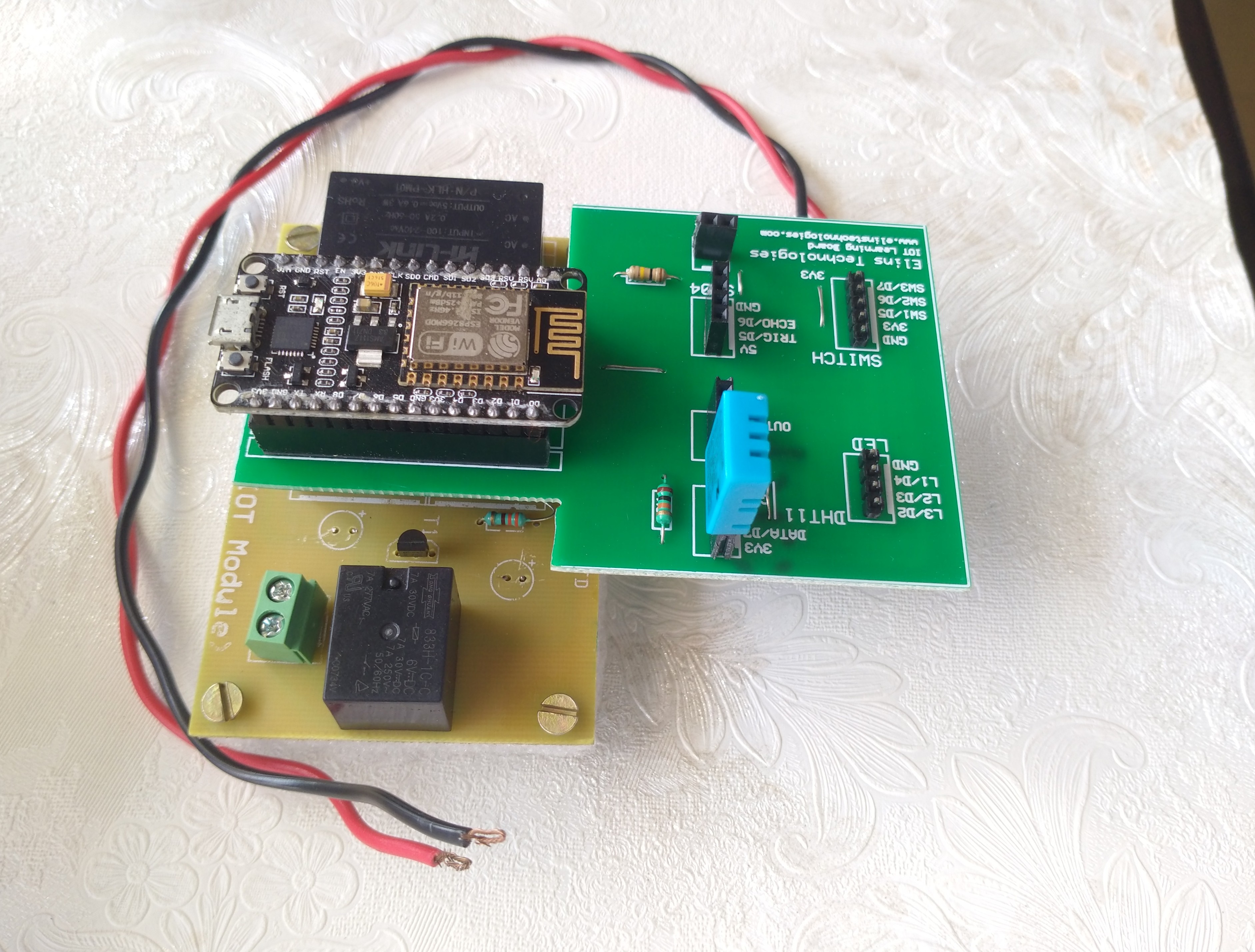

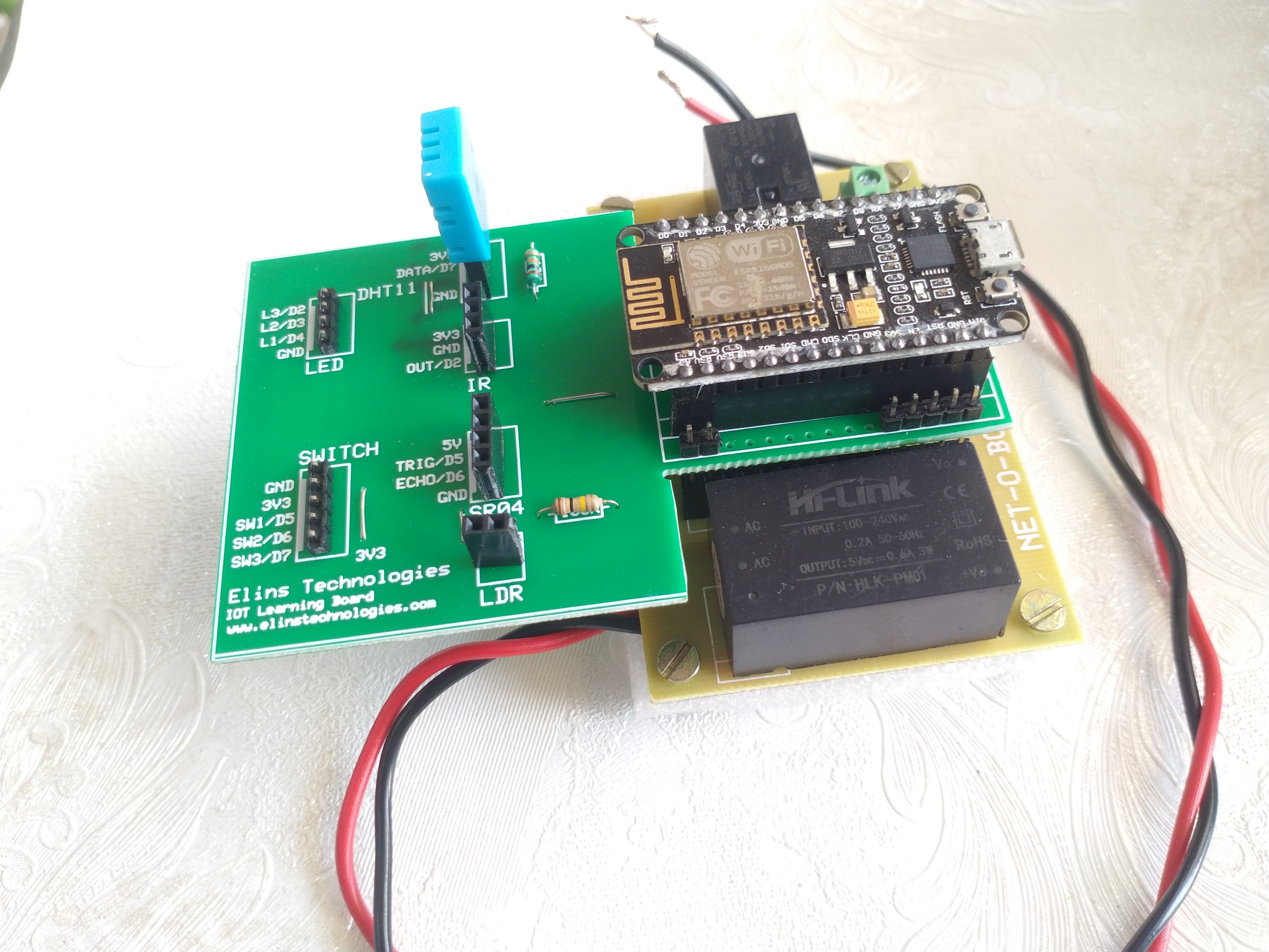

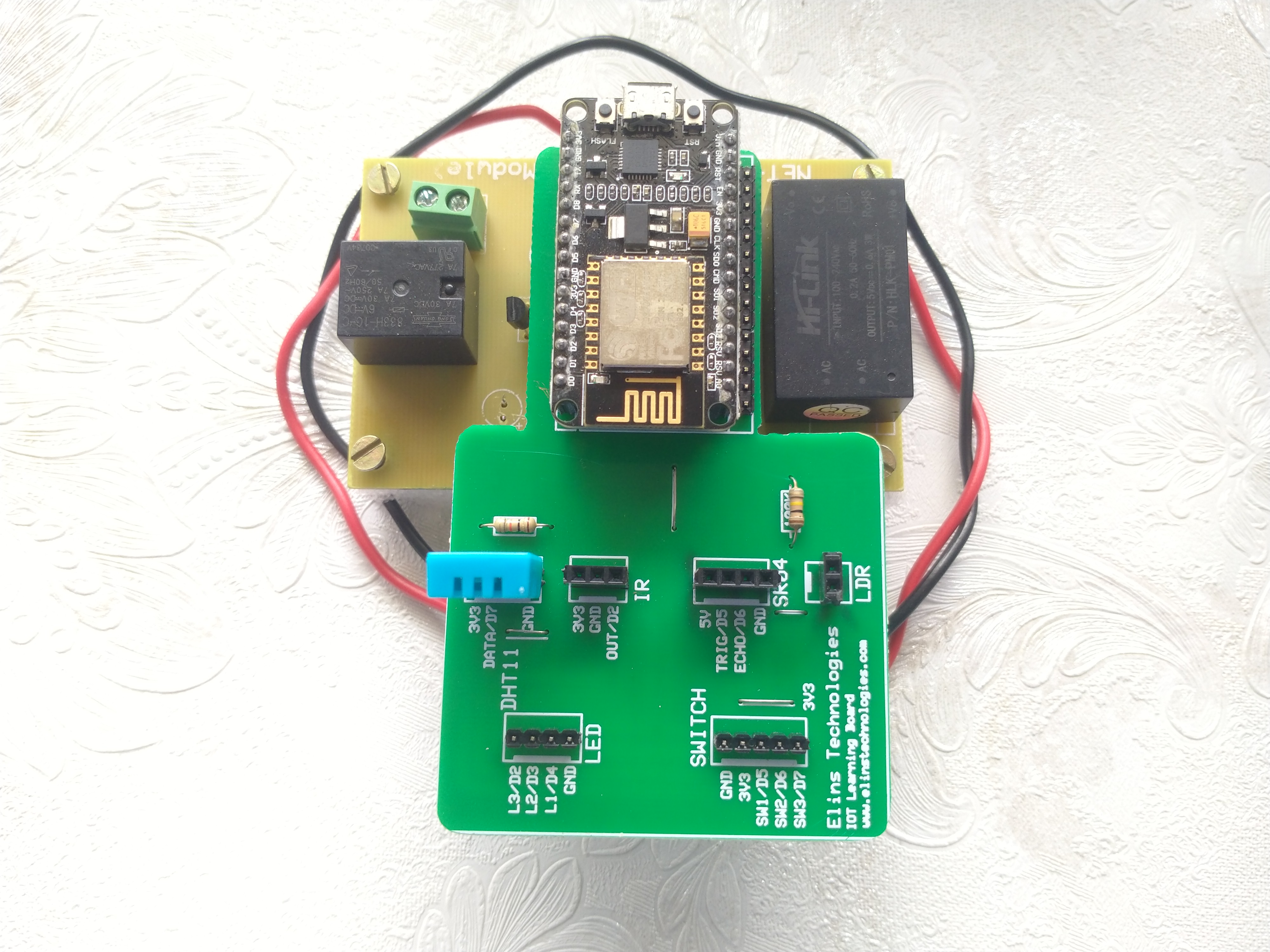

IOT Learning Kit is a development board based on NodeMCU. IOT Learning Kit Includes:
1. NodeMCU.
2. NodeMCU Board with Relay.
3. Extension Board.
4. DHT11 Temperature and Humidity Sensor.
5. Infrared Sensor.
6. SR04 Ultrasonic Sensor.
7. LDR Sensor



Actual Price : Rs.2999
For Now : Rs.1999 Only
Free Delivery
For Details: Whatsapp at +91-8750853539
